自定义地图绘制及使用

勾画地图区域生成json数据

需要借助三方工具，本示例使用帆软

通过帆软设计器进入设计页面

可以基于地图或图片作为底

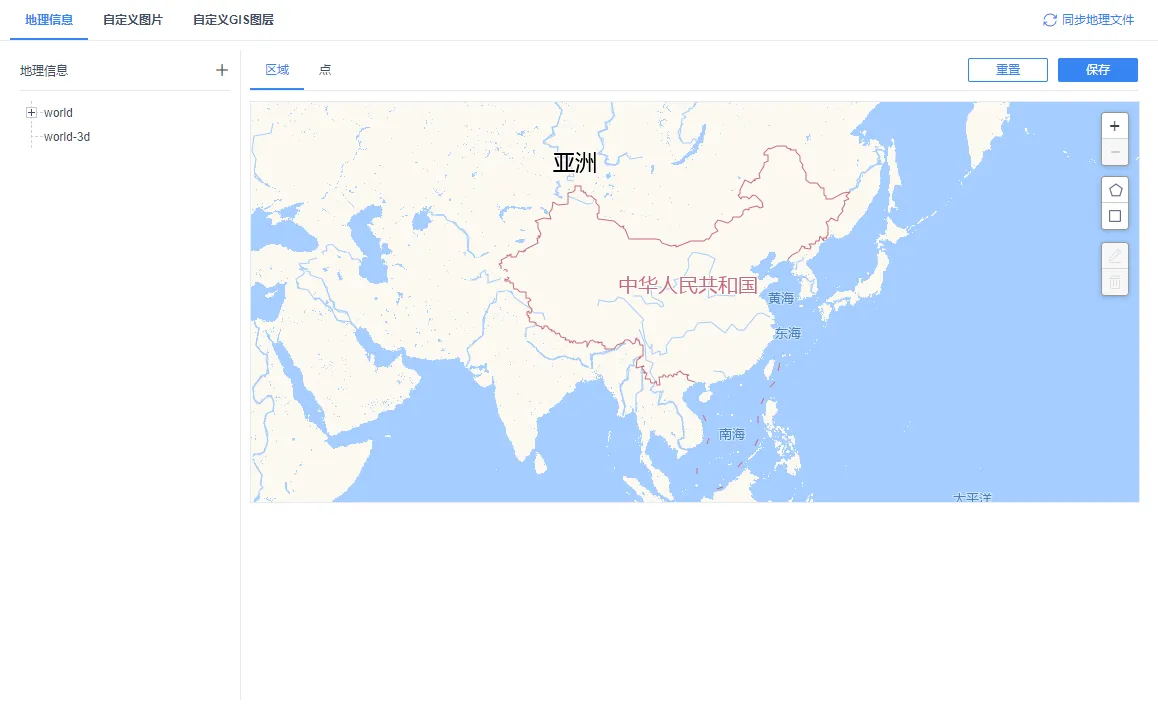

使用右侧工具勾画区域

注意需要闭环

绘制一个区域设置区域名称

绘制完成后保存

保存后在帆软安装路径下查找文件

FineReport_10.0\webapps\webroot\WEB-INF\assets\map\image

制作图表

区域地图

表单模板

区域地图自定义geojson，选择地图类型为自定义，将geojson文件内容放入下方内容中

其他配置同中国地图配置一样；

预览效果

自定义地图

一般需要底图，默认配置达不到效果，需要自定义图表来处理；

报表模板

引入需要的js； 文件路径：lczReport/lib/echarts/4.7.0/echarts.min.js
如需其他三方js可以在这里引入

创建扩展控件，关联模板数据

进入事件配置，选择初始化后事件，js事件

编写初始化后js脚本案例

ER.widget.extend(this, {
    type: 'echarts',

    init: function (datas, element, echarts) {
        console.log(12343123);
        myChart = echarts.init(element);
        var geomap = {
            "type": "FeatureCollection",
            "features": [
            {
            "type": "Feature",
            "geometry": {
                "type": "Polygon",
                "coordinates": [
                [
                    [2152.0, 1644.0],
                    [1972.0, 1632.0],
                    [1816.0, 1736.0],
                    [2076.0, 1848.0],
                    [2352.0, 1708.0],
                    [2152.0, 1644.0]
                ]
                ]
            },
            "properties": { "name": "1号楼综合区" }
            },
            {
            "type": "Feature",
            "geometry": {
                "type": "Polygon",
                "coordinates": [
                [
                    [2260.0, 1558.0],
                    [2252.0, 1500.0],
                    [2616.0, 1418.0],
                    [2754.0, 1488.0],
                    [2468.0, 1636.0],
                    [2260.0, 1558.0]
                ]
                ]
            },
            "properties": { "name": "2号楼综合区" }
            },
            {
            "type": "Feature",
            "geometry": {
                "type": "Polygon",
                "coordinates": [
                [
                    [1948.0, 1428.0],
                    [2072.0, 1434.0],
                    [2244.0, 1334.0],
                    [1828.0, 1148.0],
                    [1602.0, 1300.0],
                    [1948.0, 1428.0]
                ]
                ]
            },
            "properties": { "name": "3号楼综合区" }
            },
            {
            "type": "Feature",
            "geometry": {
                "type": "Polygon",
                "coordinates": [
                [
                    [1686.0, 1652.0],
                    [1852.0, 1550.0],
                    [1852.0, 1500.0],
                    [1762.0, 1470.0],
                    [1534.0, 1384.0],
                    [1338.0, 1594.0],
                    [1446.0, 1642.0],
                    [1516.0, 1596.0],
                    [1686.0, 1652.0]
                ]
                ]
            },
            "properties": { "name": "4号楼综合区" }
            },
            {
            "type": "Feature",
            "geometry": {
                "type": "Polygon",
                "coordinates": [
                [
                    [1502.0, 1376.0],
                    [1306.0, 1576.0],
                    [1190.0, 1550.0],
                    [1210.0, 1532.0],
                    [1092.0, 1476.0],
                    [1030.0, 1504.0],
                    [902.0, 1456.0],
                    [984.0, 1382.0],
                    [1502.0, 1376.0]
                ]
                ]
            },
            "properties": { "name": "5号楼综合区" }
            },
            {
            "type": "Feature",
            "geometry": {
                "type": "Polygon",
                "coordinates": [
                [
                    [1492.0, 1246.0],
                    [1572.0, 1268.0],
                    [1882.0, 1052.0],
                    [1664.0, 936.0],
                    [1444.0, 1072.0],
                    [1492.0, 1246.0]
                ]
                ]
            },
            "properties": { "name": "6号楼综合区" }
            }
            ],
            "imageSuffix": "jpg",
            "imageWidth": 3201,
            "imageHeight": 2628
        };
        echarts.registerMap('area1', geomap);

        let data = [];
        for (var i = 0; i < datas.content["建筑"].length; i++) {
            data.push({
                "name":datas.content["建筑"][i],
                "value":datas.content["值"][i]
            })
        }
        function convertData(data) {
            var res = [];
            for (var i = 0; i < data.length; i++) {
                var geoCoord = geoCoordMap[data[i].name];
                if (geoCoord) {
                    res.push({
                        name: data[i].name,
                        value: geoCoord.concat(data[i].value),
                        // itemStyle:{}
                    });
                }
            }
            console.log(res)
            return res;
        }

        option = {
            "tooltip":{
                "formatter":'{a},{b}: {c}'
            },
            "geo":{
                "map": "area1",
                "left":0,
                "top":0,
                "width":320,
                "height":262,
                "boundingCoords": [
                    [0, 2620],
                    [3200, 0]
                ],
                "roam":false,
                "itemStyle":{
                    "opacity":1
                }
            },
            "graphic": [{
                "type": 'image',
                "left": '0',
                "top": '0',
                "bounding": 'all',
                "style": {
                    "image": 'lczResource/img/app_20160809143122/1/1b32044f86d442aabf41.jpg',
                    "width":320,
                    "height":262
                },
                "draggable":false
            }],
            "series": [{
                "geoIndex": 0,
                "data": data,
                "selectedMode": false,
                "name": "人数",
                "type": "map",
                "label":{
                    "show":true,
                    "formatter": '{c}'
                }
            }]
        };

        myChart.setOption(option);
    }
})

预览效果
